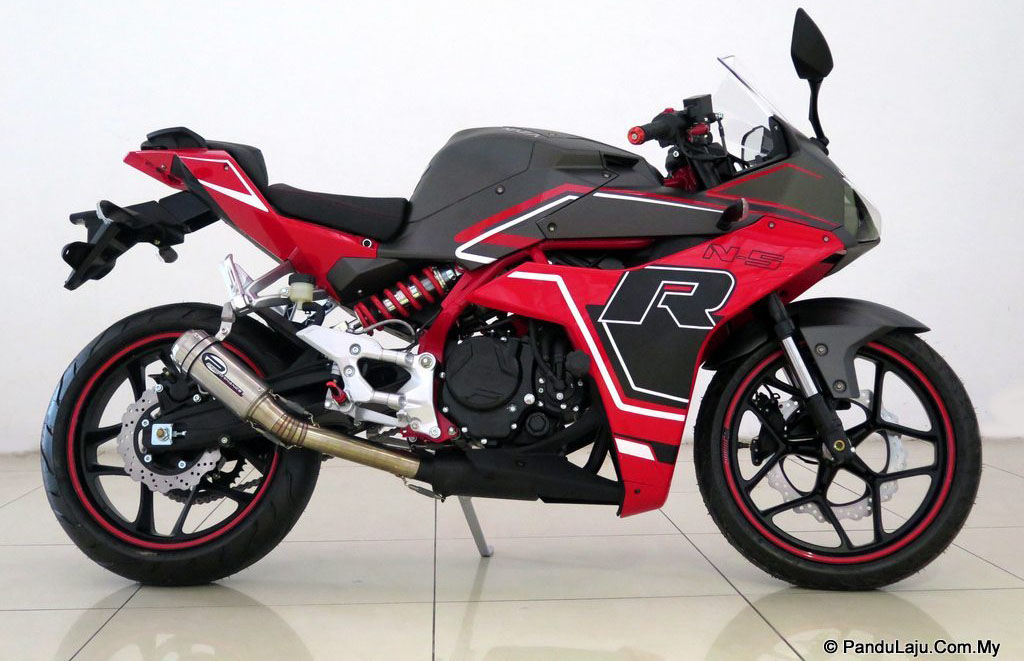

Naza N5R 250cc


New design Naza N5R 250, it very interesting and great design as a sport bike. This bike is second edition from first model of Naza N5 a.k.a Hyosung  GD250R

Naza N5 first model

Specifications/Technical Details Naza N5R 250cc

Chassis Type Liquid cooled DOHC 4-valve Single cylinder

Displacement 249cc
Bore x Stroke 73 x 59.6
Compression Ratio 12 : 1
Max Power 28.4 HP
Fuel System Fuel injection
Lubrication Wet sump
Clutch Wet, Multiplate
Gear Constant mesh, Close ratio 6-speed (1down 5up)
Final Drive Chain
Frame Type Steel tubular trellis perimeter main frame & Steel tubular assembly sub frame
Overall Length 76.25 in
Overall Height 43.30 in
Overall Width 27.55 in
Wheel Base 52.99 in
Ground Clearance 5.31 in

Engine Seat Height 31.1 in
Caster 23.5 º
Trail 93.6mm
Brake F: 300ø Petal shaped spoke mounted single disc, 4 opposed pistons caliper, Stainless mesh hose
Brake R: 230ø Petal shaped single disc, 2 opposed pistons caliper, Stainless mesh hose
Suspension F: 37ø Upside down Telescopic
Suspension R: Dual side Aluminum Swing arm with Gas charged Hydraulic shock absorber (Nonstep Preload adjustable)

Transmission Tire F: 110/70 R17 54S / R: 150/60 R17 66S

Fuel Tank Capacity 2.9 gal
Curb Weight 352 lbs









Price : RM 11300


Top Speed :



Video : Hyosung GD250R
